Kverneland Qualidisc 1100 L
Tillage | DIsc Harrow
Lightweight, compact, versatile - superior soil penetration and mixing already from 45hp

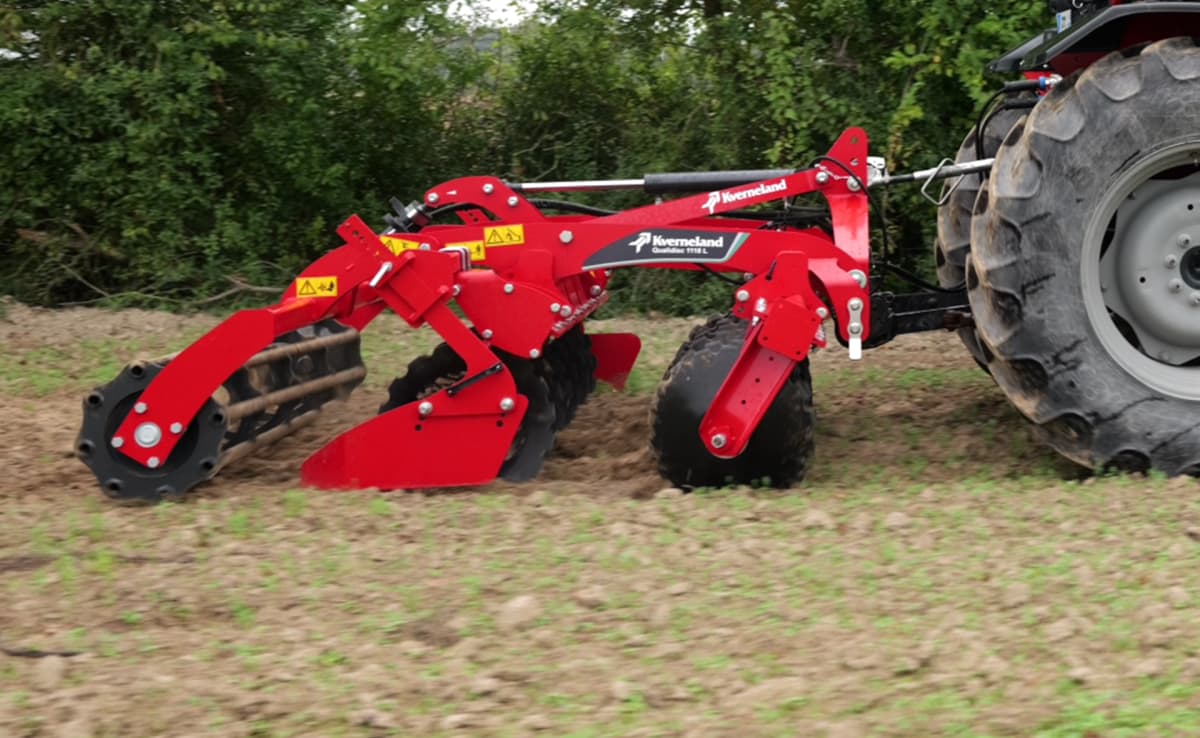

The Kverneland Qualidisc 1100 L is the lightweight mounted compact disc harrow for stubble cultivation and seedbed preparation. Its compact and versatile design perfectly fits to small to medium-sized fields and orchards, delivering cost-effective performance already from 45hp.
Description
The Kverneland Qualidisc 1100 L is a lightweight mounted compact disc harrow, available in 1.75m and 2.25m working widths with Ø520mm hardened discs for excellent soil penetration and mixing. Optional side deflectors, rollers, star discs or notched discs ensure consistent results. The roller can be lifted for safe transport and easy headland turns. Simple depth adjustment, maintenance-free bearings, and a single grease point make operation and maintenance easy. Durable, efficient and versatile, the Qualidisc 1100 L is ideal for small to medium fields and specialist farms like orchards.
Lightweight, fuel-efficient design
With a weight of only 710 kg (1.75 m version), the Qualidisc 1100 L reduces fuel consumption while maintaining exceptional performance in a wide range of soil conditions.
Superior soil penetration and mixing
The Ø520 mm hardened discs ensure deep, consistent cultivation, breaking up clods and incorporating residues efficiently for stubble cultivation and optimal seedbed preparation.
Customizable to your needs
A wide range of options allows you to adjust the machine to your farming system and requirements:
- Side deflectors
- Various roller types
- Star discs
- Notched discs
Technical specifications
Technical specifications
Download brochure| Models | Kverneland Qualidisc 1180 L | Kverneland Qualidisc 1123 L | |
|---|---|---|---|
| Working witdh (m) | 1.75 | 2.25 | |
| Tranpsort width (m) | 2.07 | 2.57 | |
| Roller witdh (m) | 2.00 | 2.50 | |
| Working depth (cm) | 2-10 | 2-10 | |
| Inter-row distance | 800 | 800 | |
| Number of discs | 14 | 18 | |
| Weight w/o. deflector (kg) | 710 | 850 | |
| Weight optional deflector (kg) | Left side: 28.5 / Right side: 27 | Left side: 28.5 / Right side: 27 | |
| Disc diameter (mm) | Ø 520 | Ø 520 | |
| Disc thickness (mm) | 4 | 4 | |
| Disc arm thickness (mm) | 8 | 8 | |
| Pair of star disc | option | option | |
| No. Of double acting valves | 1 | 1 | |
| Cage roller diameter (mm) | Ø 400 (Ø 550 in option) | Ø 400 (Ø 550 in option) | |
| Cage roller lift-up option | Yes | Yes | |
| Cage roller hydr. folding cylinder (mm) | 60x30 | 60x30 | |
| Depth adjustment | Mechanical by spacer (Option: Hydraulic by spacer) | Mechanical by spacer (Option: Hydraulic by spacer) | |
| 3-point linkage (ISO 730) | CAT I + CAT II | CAT I + CAT II | |
| Min. HP | 45 | 60 | |
| Max. HP | 80 | 90 |
